BRINGING ULTRASONIC FLOW MEASUREMENT TO THE EXTREMES

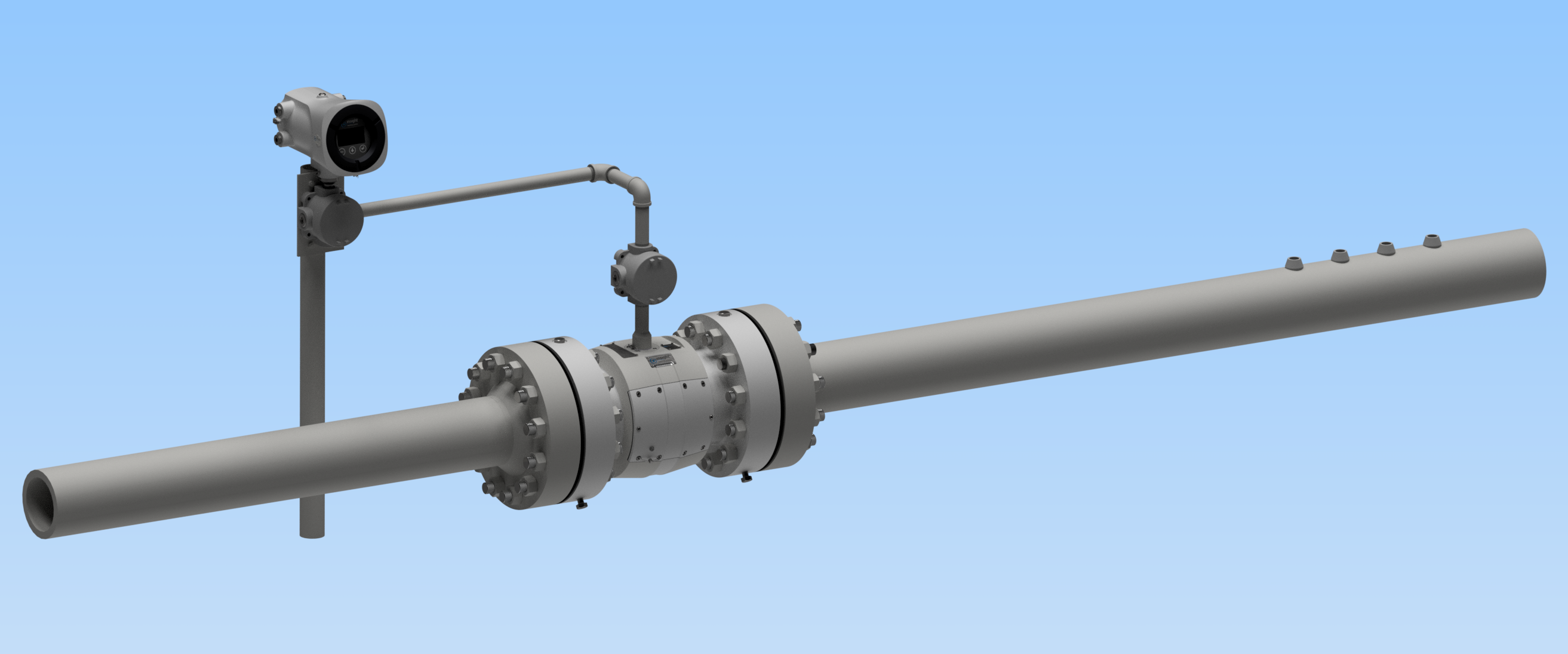

iSonic 8L-XT - Liquid Flow Measurement for Extreme Temperatures
XTC - Cryogenic Temperatures
XTH - Power Plant Feedwater Temperatures

The iSonic 8L-XT is our new addition to the iSonic family. The iSonic 8L-XTH and iSonic 4L-XTC are state-of-the-art multi-path flowmeters designed to measure fluids over a wide range of temperatures.

The iSonic 8L/4L-XT are ultrasonic flowmeters of forged steel bodies with up to 16 high-precision non-wetted transducers,  high-speed electronics, and lightning-fast signal processing resulting in the most innovative,  accurate and reliable ultrasonic flow meter in the industry.

Features & Benefits:

A multi-path flowmeter  designed for custody transfer and precise calorimetrics

Non-wetted transducers welded-in stainless housings

Available in sizes 3"- 24"

Working pressures up to 6,000 psig

Working temperatures, -200 to  100 C cryogenic operation and  -40 to 250 C for high temperatures

Download our brochure for more information and all technical specifications.Download 20Brochure_Rev2
